| Light diesel series - CX26/CX26-2 | ||||||
| Fuel consumption | 10.0-26.0 | kg/hr | ||||
| Output power | 118-308 | kw | ||||
| Heat output | 102000-265000 | cal/h | ||||
| Motor power | 250 / 370 | w | ||||
Power supply | 220/50 | V/Hz | ||||
Control | Single stage control / Two stage control | |||||
| Package size | 590*525*350 | mm | ||||
| Net weight | 20 | kg | ||||
| Air supply | Forced draught | |||||
| Fuel | light output | |||||
| Pressure | low pressure | |||||
| Structure | Integrated | |||||
| function | ||||||
| Safety protection system | Automatic controlle | ✔ | ||||
| Flame monitoring device | ✔ | |||||
| Fuel supply system | filter | ✔ | ||||
| fuel pump | ✔ | |||||
pressure regulator | ✔ | |||||
| Gas flow regulating device | ✔ | |||||
| Automatic safety cut-off valve | ✔ | |||||
| A controlled shutdown | When the burner does not need heating, it automatically cuts off the fuel supply to realize the process of shutdown | ✔ | ||||
| Safety shutdown | When safety device response or automatic control system failure, automatically cut off the fuel supply, realize the process of shutdown | ✔ | ||||
| Packaging | ||||||
| Qty per Carton（pc） | 1 | |||||
| Model | Packaging dimensions (length × width × height) | Netweight（kg） | Gross weight（kg） | |||
| Standard | 595×515×360mm | 16.5 | 20 | |||
| Extended 1 | 750×515×360mm | 20 | 22 | |||
| Straight Through | 595×515×360mm | 19 | 19 | |||
| Fine Tip Standard | 595×515×360mm | 17 | 20 | |||

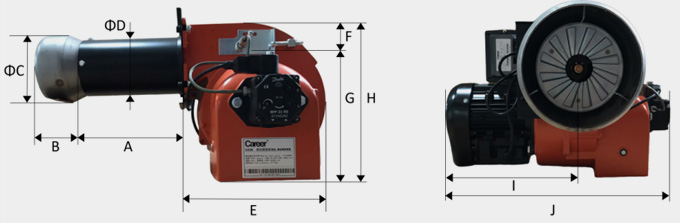

| Unit mm | A | B | C | D | E | F | G | H | I | J | Min. Floor Distance |
| Standard | 200 | 75 | 137 | 113 | 270 | 85 | 190 | 470 | 245 | 470 | 200 |
| Extended 1 | 350 | 75 | 137 | ||||||||
| Straight Through | 270 | - | - | ||||||||
| Fine Tip Standard | 200 | 75 | 128 |
On demand customization
Our solution to your needs. Leading and innovative design concept for Career burner to win the market place. Unique customized products and standard products are fully capable of meeting the needs of all customers
Professional solution
We have core talents specializing in burner research and development, from burner design, research and development, marketing services and professional optimization experience. Through the real case test of global customers
Strong adaptability
Career burner is widely used in the heat industry, from standard products to non-standard customization, can cope with all the harsh working conditions of the heat industry, to meet customer needs
Boiler equipment casePurpose：Boiler (heating)Related products：GX25 and GX100 mechanical modulation
Case of waste incineration equipmentPurpose：Small incinerator (for processing all kinds of animal carcasses and feces, medical solid waste and laboratory solid waste)Related products：CX14
Drying equipment casePurpose：Hot blast stoveRelated products：BX20
Case of Heating EquipmentPurpose：Civil heatingRelated products：FX5
Can't find a suitable solution? Professional consultant to help you：008613702340609!
